ISOFIX explained:
origin, standard and holding force
Before ISOFIX became a fixture in every new car, it was the answer to a single problem: incorrectly installed child seats. The story of a standard that today gives the DOXAFER® the same connection.
A problem in search of a solution
In the late 1980s, a child seat was only as safe as its installation — and installation with the vehicle seat belt was prone to error. Too loose, routed incorrectly, not re-tightened after rearranging the car: studies by the automotive industry repeatedly showed how many child seats in everyday use were not fitted the way they should be. In 1990, the International Organization for Standardization (ISO) therefore began work on a dedicated standard for a fixed, standardized connection between vehicle and child seat.
The breakthrough came through a carmaker. Ford pushed development forward after the original consortium had stalled, and in 1995 announced that it would equip production vehicles with the new anchorages. In the same year, the European Commission and the world motoring federation FIA approved the system. In 1997 the time had come: child seat manufacturer Britax Römer presented the first child seat with this new attachment, while Volkswagen simultaneously launched the Golf 4, the first production model with the matching anchorages. From the turn of the millennium, almost all car and child seat manufacturers followed suit.
The name under which the system became established: ISOFIX — after the ISO, which standardized it.
No strap, no tensioning, no guesswork.
Just a click — or none at all.
What ISOFIX was originally created for
ISOFIX is not an accessory that was later discovered for child seats — it was created for them in the first place. The entire standard describes child restraint systems: how they are tested, how they are labeled, which weight classes they cover. The two standardized bars in the gap between seat cushion and backrest were developed so that a child seat is connected to the vehicle not with a belt, but by simply clicking into place.
Hence the name: ISOFIX — the fixed connection according to the ISO standard. The idea behind it was simple: a system that either sits completely correctly or does not latch at all leaves no room for the installation error that had previously been the greatest safety risk.
That this anchorage today carries more than the seat it was designed for changes nothing about its origin — only its reach.
The standard: ISO 13216
01Two bars, one dimension
The international standard ISO 13216 specifies what the connection must look like: two rigid metal bars, around six millimeters thick, spaced 280 millimeters apart, firmly welded or bolted to the load-bearing body structure — not to the seat cushion. Part 1 of the standard, which describes these lower anchorages, was published in 1999. The latch arms of the seat grip the bars with a claw-like opening and cannot be released afterwards without actively unlocking the catch.
02The third point
Because a frontal impact could otherwise tip the seat forward around the two lower bars, a third anchor point was added: the top tether, a strap running to the backrest or toward the trunk, or alternatively a support leg that rests on the vehicle floor. Part 2 of the standard, which describes this additional point, followed in December 2004.
03From proposal to requirement
What began as voluntary standard equipment became mandatory for certain vehicle and seat categories from 2013 under the European regulation ECE R129. We cover the exact legal situation — since when it has applied, to what extent, and what it means for your own vehicle — in detail in our foundational article Isofix for dogs: standard, technology, legal situation.
Holding capacity: how much the connection carries
ISOFIX is designed for a specific weight range: according to the specification, the connection is rated for a maximum combined weight of seat and child of 33 kilograms. This is not an arbitrary figure but the upper limit for which the geometry and material thickness of the bars — the six-millimeter, positively locking latch arms — are designed. Larger and heavier child restraint systems therefore switch to attachment with the vehicle seat belt or to additional Isofix bases with their own support.
What determines the holding force is not the material alone, but the design. A latch arm does not hold because it has been strapped tight, but because it positively locks around the bar — a state that, unlike a tensioned strap, does not loosen through vibration, heat or time. We describe in detail how this difference between friction locking and positive locking plays out in practice in the article ISOFIX dog seat: why the fixed connection matters.
How the DOXAFER® uses the same standard
The bars in your rear seat do not ask who is clicking in. They are a fixed point on the vehicle, geometrically standardized to a dimension of 280 millimeters — and the DOXAFER® connector is built to exactly this dimension. The same latch arms, the same principle that has held child seats since 1997, now carry the connection between vehicle and your dog's place.

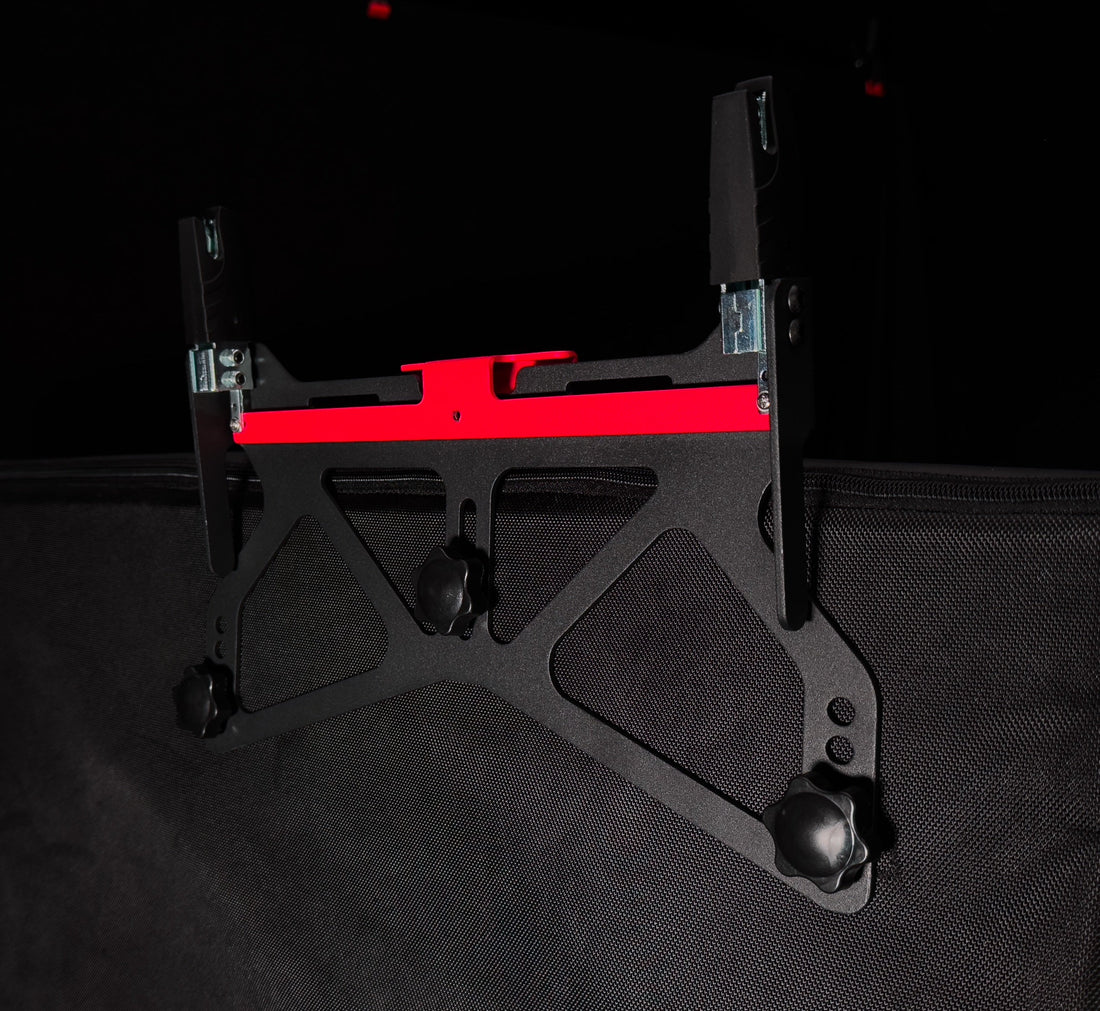

The image above shows this connector: rigid frame, reinforced latch arms on both sides, adjustment mechanism for a precise fit on the carrier bag. No lashing strap, no improvising — the same positive locking that carries a standard from child seat engineering over to the dog.
These anchorages are standardized. Our seat fits any existing Isofix.
What this means for your dog
- Rooted in child seat engineering. ISOFIX was developed to make installation errors impossible — not as a compromise, but as a replacement for the belt.
- Standardized geometry since 1999. Two bars, 280 millimeters apart, six millimeters of steel — identical in every vehicle with ISOFIX.
- A weight range of 33 kilograms. The connection is designed for this load — positive locking instead of belt tension.
- The same connection, a different user. The anchorage knows no particular passenger — only a connection that either holds or does not latch.
How to find the anchorages in your own car and check the installation is explained in the article Dog crate for the rear seat: why ISOFIX makes the difference. Whether using them for a dog crate is permitted at all is covered in the article ISOFIX for dog crates: permitted or only for child seats?. You will find everything on the standard, technology and legal situation in one place on the page Isofix for dogs.
In brief
ISOFIX was created in the 1990s for child seats, standardized in 1999 as ISO 13216, and is designed for a total weight of 33 kilograms. Today the DOXAFER® uses the same standardized, positively locking connection — for a passenger the standard did not originally have in mind.
