ISOFIX dog seat:
why the fixed connection matters
Between the backrest and the seat cushion sit two standardized metal bars. Whatever locks in there becomes part of the vehicle — and behaves completely differently under braking than anything that is merely strapped down.
The gap where the technology sits

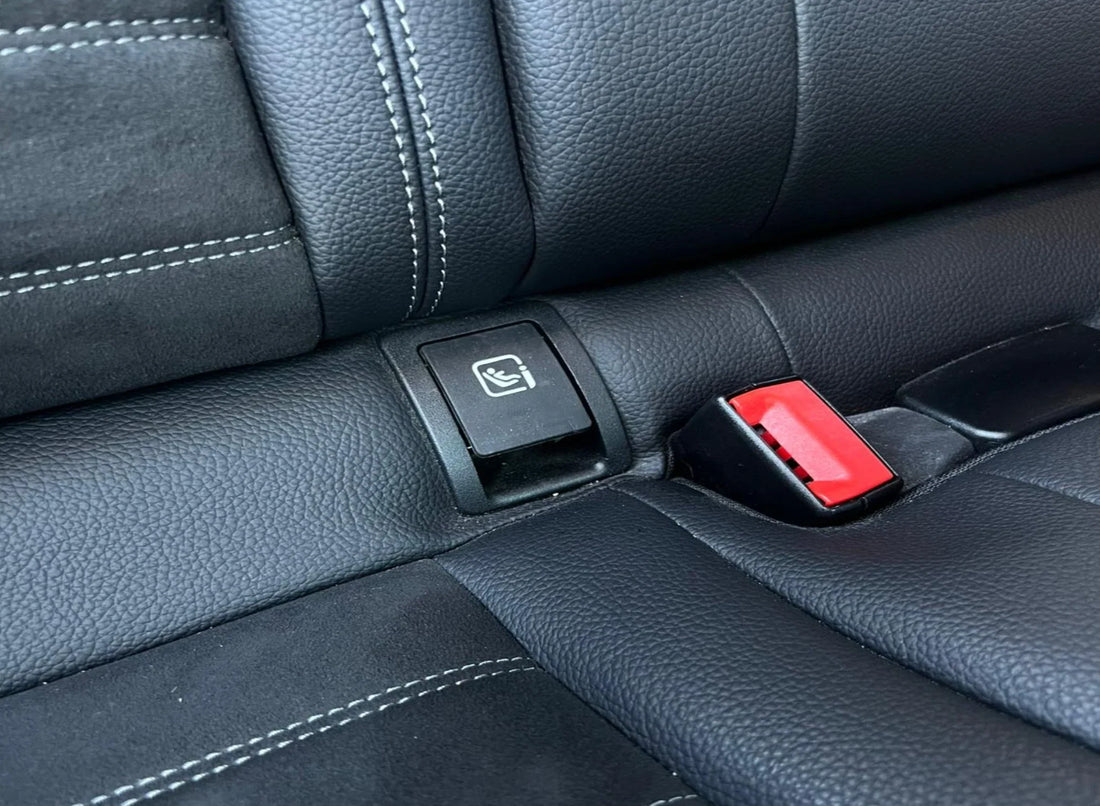

Slide your hand into the gap between the backrest and the seat cushion of your rear seat. If you come across a small, horizontal metal bar there, you have just touched the anchorage this article is about. Every ISOFIX dog seat attaches to it. It is not an accessory that someone bolted on afterwards, but part of the body — welded or bolted to the vehicle's load-bearing structure, exactly where forces belong.

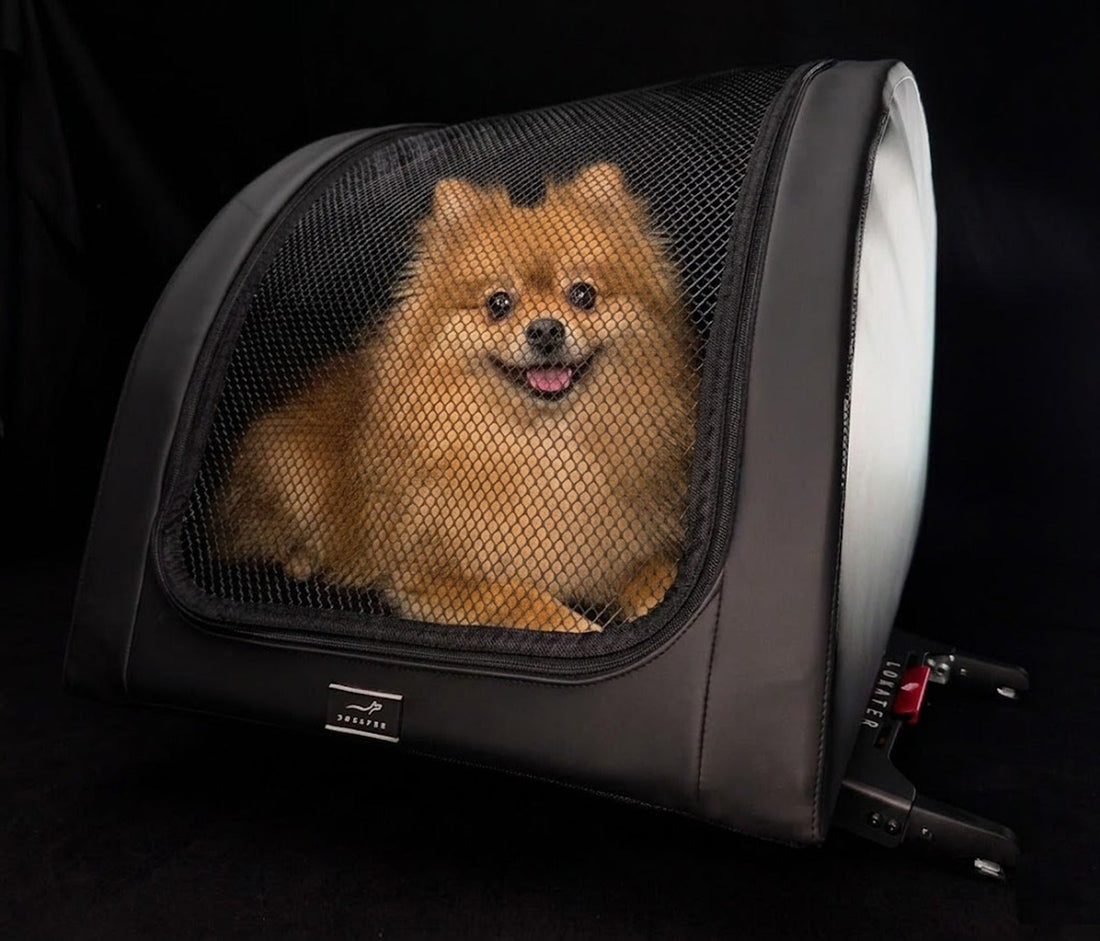

An ISOFIX dog seat uses precisely these anchorages. Instead of tensioning straps, you slide two latch arms onto the bars until they audibly click into place. From then on, the crate is no longer an object lying on the rear seat, but a component that forms a single unit with the car. This difference sounds small. Technically, it is the whole point.
The system comes from child seat design, where it was developed over years to solve exactly one problem: people install seats incorrectly. Straps are pulled too loosely, routed incorrectly, not retightened after rearranging. ISOFIX takes the degrees of freedom out of the installation. Either it locks, or it does not.
A strap holds because you tension it.
A latch arm holds because it can no longer slip through.
Why an ISOFIX dog seat holds differently
Connections in engineering can be roughly divided into two groups. Friction-locked connections hold through friction and preload: a lashing strap presses the crate onto the seat cushion, and as long as the tension is sufficient, nothing moves. If the tension decreases — through the webbing settling, the cushion giving way, a jolt — the holding force decreases with it.
Positive-locking connections hold through geometry. The latch arm encloses the bar, the bolt drops behind the edge, and movement is blocked because two bodies cannot occupy the same space at the same time. Whether you pulled hard or not makes no difference.
That is why a locked connection does not change over weeks. It knows no gradual loss of tension — only two states, connected or not.
Holds in everyday use, or holds in a crash
Most transport solutions pass the test of everyday use. They do not slide away when driving through town, they do not tip over in curves, and anyone who sees them daily considers them safe. But everyday use only makes small demands: a normal braking maneuver generates forces roughly in the range of the object's own weight.
01Everyday use means: the force stays small
When pulling away, braking and cornering, accelerations act that your body perceives as pleasant or unpleasant, but never as threatening. A crate strapped down with a belt stays put. That is exactly the trap: everyday use is not a test, but a habit.
02A crash means: the force multiplies
In a collision, the vehicle is decelerated sharply in a very short time. The force acting on every mass in the interior is the product of that mass and the deceleration — and because the deceleration is many times higher than anything that occurs in everyday use, the same applies to the force. A dog that is held effortlessly in everyday driving becomes, in that moment, a load that friction and strap tension are not designed for.
03And that is why the load path counts
A crate locked in by positive locking does not transfer the force through the seat cushion, but directly into the points the vehicle manufacturer designed for it. The connection does not first have to overcome play before it bears load. It bears load from the very first millimeter. That is exactly what an ISOFIX dog seat is built for.
Does your vehicle have ISOFIX — and how does installation work?
The anchorages have been fitted in many cars for a long time, but they are not always visible. Three steps are enough to find out.
01Identify
First look at the backrest. There is often a small symbol or a sewn-in marker pointing to the gap below. If there is none, feel along the gap between backrest and seat cushion: two horizontal bars, usually about a hand's width from the door side and from the center seat, are the telltale sign. Some vehicles hide them under plastic caps or small guide sleeves that can be removed. The owner's manual also lists the seating positions with anchorages.
02Install
Clear the seat and push the cushions slightly apart so that the bars are accessible. Position the latch arms centrally, align the crate straight and slide it horizontally backwards until both sides audibly click into place. It is important to press evenly on both sides — if the frame tilts, often only one side locks. Afterwards, check the indicator or the position of the bolt on both arms.
03Check
Grip the crate at the front edge and pull firmly forward, then sideways. It may move as a whole together with the seat cushion, but it must not shift relative to the anchorages. A solid, immediate stop is the result you are looking for. Repeat this check after every rearrangement of the rear seat and after every longer removal.
The location is secondary, the connection is not
On the rear seat, the ISOFIX anchorages provide the connection. In the trunk, it is the lashing eyes and fixing points provided there that the BOOT models work with. Both routes lead to the same technical result: the crate is connected to the vehicle's structure and not just placed inside.
So decide based on your everyday routine. If you need the trunk for luggage anyway, choose the rear seat. If you have plenty of space and like to see your dog lying flat, choose the trunk. What counts in both cases is the fixed connection — and a size in which your dog can lie, sit and turn around.
How such a place on the rear seat feels in practice is described in more detail in the article Dog crate on the rear seat with ISOFIX.
What matters during installation
- Both sides audibly locked. A crate connected on one side only is an unconnected crate.
- Positioned straight. If the frame tilts, the bolt does not engage the bar cleanly.
- Pull test forward and sideways. The crate must not shift relative to the anchorages.
- Rechecked after every fold-down. Folding down the backrest releases the geometry beneath it.
- Interior tidied up. In an emergency, loose objects next to the crate follow physics, not your intentions.
If your dog is restless or drools on longer journeys, the installation is rarely the cause. What helps then is covered in the article Dog travel sickness in the car. For the way from the car to the leash there is the Safety-Leash, for lying comfort the orthopedic floor.
Which size fits your dog?
The best connection to the vehicle is of little use if the dog cannot lie down inside. What matters are shoulder height, back length and the posture your dog naturally adopts in the car. Measure your dog standing and lying down, and if in doubt, choose the size in which it can still turn around. Further accessories can be found in the accessories overview, more articles in the magazine.
Start size finder →In brief
ISOFIX connects the dog's place to the vehicle structure by positive locking instead of merely strapping it down. The difference does not show in everyday use, but in the moment when weight turns into force. Check whether your rear seat has the bars, lock in on both sides, and check again after every rearrangement.
